The original CRL selector switch for Strat® & Tele® etc. Made in the U.S.A. Comes with nickel mounting screws.
3 way - $40
5 way - $40
Oak Grigsby selector switch for Strat® & Tele®.
3 way $30
4 way $40 (Tele mod.)
5 way $30
Switchcraft straight three way toggle switch. Chrome finish. Complete with knurled dress nut. For Gibson Les Paul® and similar deep body styles (1 1/2" deep body cavity required).
$40
Switchcraft straight three way toggle switch. Gold finish. Complete with knurled dress nut. For Gibson Les Paul® and similar deep body styles (1 1/2" deep body cavity required).
$45

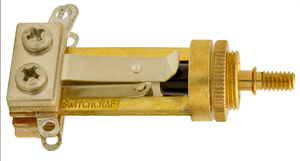

Switchcraft straight three way toggle switch. Solid Brass. Complete with knurled dress nut. For Gibson Les Paul® and similar deep body styles (1 1/2" deep body cavity required).
$65
Switchcraft short three way toggle switch. Chrome finish. Complete with knurled dress nut. For Gibsons and others with thinner bodies (7/8" deep body cavity required).
$40
Switchcraft right angle three way toggle switch. Chrome finish. Complete with knurled dress nut. For Gibson and other thin body guitars (13/16" deep body cavity required).
$40

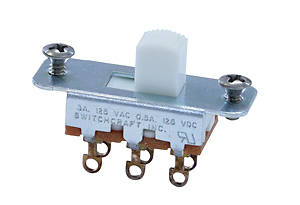

Switchcraft Slide Switch. On-On. As used in Jazzmasters and Jaguars. Chrome. Comes with mounting screws.
White button.
$12

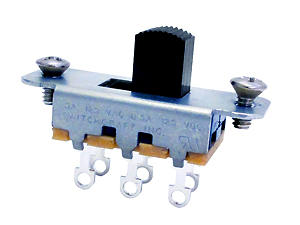

Switchcraft Slide Switch. On-On. As used in Jazzmasters and Jaguars. Chrome. Comes with mounting screws.
Black button.
$12

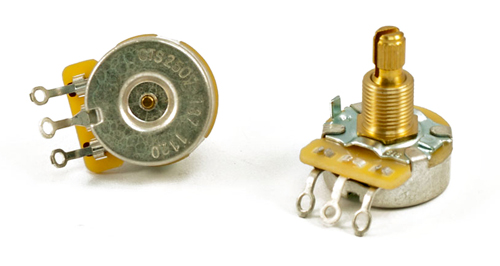

CTS 250k Vintage Fender® Style Pot. Split shaft. A premium quality CTS pot developed in conjunction with WD Music. Features vintage style indented can, 10% tolerances, brass components and a higher quality wiper to ensure long life with quality and consistent performance. Comes with nut, lock and dress washers.
$18 each
CTS 250k Audio Pot. Knurled split shaft. Comes with nut, lock and dress washers.
$12 each
Standard short shaft (c.6 mm threaded section)for pickguard mount.
Also available in a longer shaft (c.12 mm threaded section).
Short sent unless longer shaft specified.
CTS 250k Audio Pot. Solid 1/4" shaft. Comes with nut, lock and dress washers. For Teles®, J & P Basses etc.
$12 each
CTS 250k Linear Pot.(tone) Solid 1/4" shaft. Comes with nut, lock and dress washers. For Teles®, J & P Basses etc.
$12 each
CTS 250k Linear Pot. Knurled split shaft. Comes with nut, lock and dress washers. For tone circuits.
$12 each
CTS 500k Linear Pot. Knurled split shaft. Comes with nut, lock and dress washers. For tone circuits. (not pictured)
$12 each
Both 250k & 500k available in short (c.6 mm threaded section) for pickguard mount, or longer (c.12 mm) threaded section.
Short sent unless longer shaft specified.
Alpha 250k Audio Pot. Comes with nut, locking and dress washers.
Solid shaft (pictured) for 1/4" knobs $8 each
Split shaft (U.S. imperial). $8 each
Alpha 250k Linear Pot. Solid 1/4" shaft, locking and dress washers. For screw attachment 1/4" knobs.
$8 each
CTS 500k Audio Pot. Knurled split shaft. Comes with nut, lock and dress washers.
$12 each
Standard short shaft (c.6 mm threaded section)for pickguard mount.
Also available in a longer shaft (c.12 mm threaded section).
Short sent unless longer shaft specified.
CTS 500k Audio Pot. Solid 1/4" shaft. Comes with nut, lock and dress washers.
$12 each
Bourns 500k Low-Friction Audio & Linear Pots. Solid 1/4" shaft. Each pot comes with two nuts and dress washers.
Audio $12 each
Linear $12 each
CTS 1 meg Audio Pot. Solid 1/4" shaft or Knurled Split Shaft. Comes with nut, lock and dress washers.
Solid 1/4" shaft (pictured)
Also in Knurled Split shaft.
$12 each
CTS pots in Genuine Fender® Replacement Parts packaging :
Orig. T/V Control 250k Split Shaft (comes with nut, lock washer & .02 mfd cap) $20.00
Orig. T/V Control 250k Solid Shaft (comes with nut, lock washer & .04 mfd cap) $20.00
Orig T/V Control 500k Solid Shaft (comes with nut, lock washer & .02 mfd cap) $20.00
No Load 250k Split Shaft (comes with nut, washers & .02 mfd cap) $20.00
No Load 250k Solid Shaft (comes with nut, washers & .02 mfd cap) $20.00
TBX Tone Control (comes with white tone knob, nut, washers, caps & wiring diag.) $40.00
Switchcraft 11 1/4" Jack. Chrome finish. For guitar output. Comes with nut, lock and dress washer.
$7 each
Pure Tone 1/4" Mono Jack. For guitar output. Gold finish. Patented 2 spring per pole design. With gold nut and dress washer.
$16
Switchcraft 12A 1/4" Jack. Chrome finish. Shorting type for amps etc. Comes with nut, lock and dress washer.
$8 each
Pure Tone 1/4" Mono Jack. For guitar output. Nickel finish. Patented 2 spring per pole design. With gold nut and dress washer.
$12
Switchcraft 12B 1/4" Jack. Chrome finish. For Stereo output. Comes with nut, lock and dress washer.
$8 each
Sprague Orange Drop 715 and/or 225P capacitors. For treble bleed circuit.
.001 mfd
.0022 mfd
.0047 mfd
All $5 each.
Ceramic disc capacitors for guitar tone circuit.
.1 mfd
.047 mfd
.022 mfd
All $3 each.
Sprague Orange Drop 715 and/or 225P capacitors. For guitar tone circuit.
.022 mfd
.047 mfd
.068 mfd
.1 mfd
All $5 each.
Montreux Retrovibe Oil Capacitor.
.022 mfd
$20 each
Montreux Retrovibe Oil Capacitor.
.047 mfd
$20 each
Montreux Retrovibe "F60" Capacitor.
.1 mfd
$35 each
Hosco Vitamin Q Oil Capacitor.
.022 mfd
$12 each

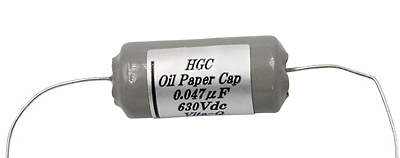

Hosco Vitamin Q Capacitor.
.047 mfd
$12 each
Montreux Retrovibe "F64" Capacitor.
.1 mfd
$20 each
Montreux Retrovibe "F66" Capacitor.
.05 mfd
$20 each
Montreux Retrovibe "F69" Capacitor.
.05 mfd
$20 each
Vintage Style Cloth Covered Wire.
Gavitt Single Conductor vintage cloth wire:
22AWG stranded wire, fully tinned with vintage pushback braided cloth cover. As used by Fender. Available in Black, White, Red and Yellow.
$6 per metre.
#22 pushback solid vintage cloth wire:
Available in : Black, Vintage Yellow & Red.
$4 per metre - or in 50ft. spools (in Yellow & in Red only) $40
Vintage Braided shielded Cloth wire :
22 AWG stranded wire with braided shield - as used by Gibson. $4 per metre.
Vintage Style Ground Plates for Stratocasters®.
Aluminium ground plates. Available in all three screw patterns : 8 screw '54 - '59 pattern, 11 screw '60 -'62 pattern and 11 screw '64 - modern pattern.
$30
Also '54-'58 style (control area only) aluminium plates.
$15
